Products

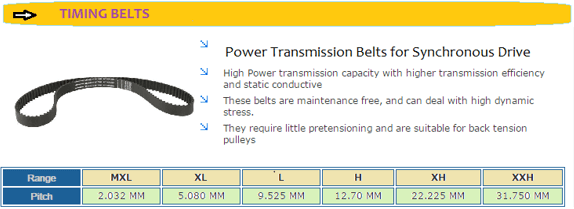

TIMING BELTS
a) Synchronous Drive Classical Belts

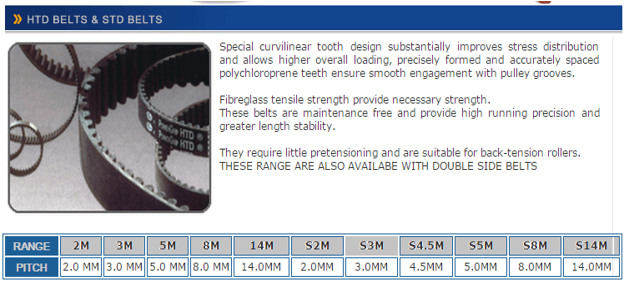

b) HTD and STD Timing Belts

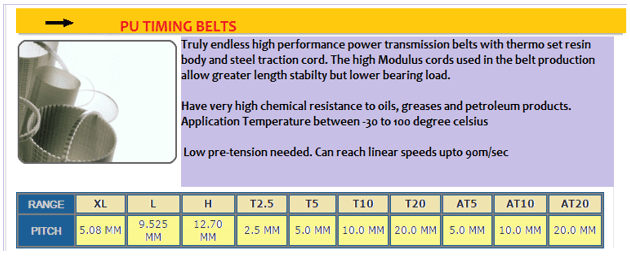

c) Synchronous drive PU timing Belts

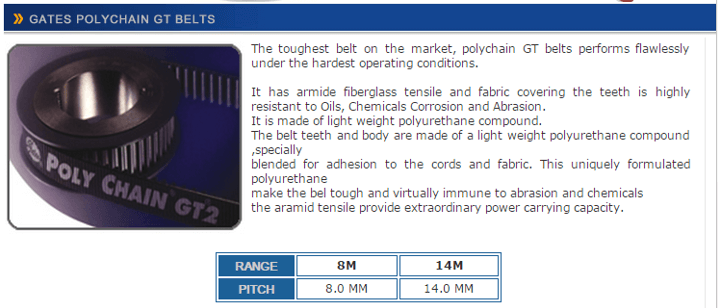

d) POLYCHAIN GT BELTS
e) Helical Offset Toothed Belts
Eagles Unique HOT (Helical Offset Tooth) Design provides a continuous rolling tooth engagement to create a lighter, quieter, reduced vibration, flangeless drive to maximize both the performance and efficiency of your drove system.
Belt Nomenclature
b) HTD and STD Timing Belts
c) Synchronous drive PU timing Belts
d) POLYCHAIN GT BELTS
- GIGA TORQUE BELTS (GT Belts) available in MITSUBOSHI
- GATES POLY CHAIN GT BELTS
- Contitech SYNCHROCHAIN brand available
- Cut in widths as per requirement (2mm to 200mm width)
- Double side toothed belts available in the above pitches
Eagles Unique HOT (Helical Offset Tooth) Design provides a continuous rolling tooth engagement to create a lighter, quieter, reduced vibration, flangeless drive to maximize both the performance and efficiency of your drove system.
Belt Nomenclature

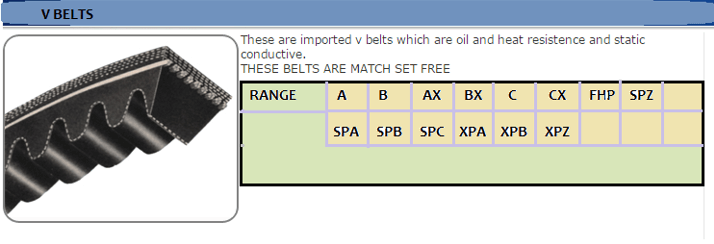

V-BELTS
a) CLASSICAL/WEDGE V BELTS
b) POLY V BELTS
c) POLY FLEX BELTS
d) BANDED WEDGE BELTS
e)VAREE SPEED BELTS
The power transmitting capacity of the belt is achieved by frictional grip, which is the wedge action of the belt between the pulley faces. . As the flanges of the pulley open or close, the belt will be forced either up or down in the pulley, producing a larger or smaller working pitch diameter which in turn will increase or decrease the revolutions per minute of the shaft upon which the pulley is mounted.
- V Belts available in the above range of sections.
- Plain and Cogged type classic wedge belts available for all the sections.
- X means cut/ cogged type.
- Wedge belts of MITSUBOSHI and DONGIL have specially compounded synthetic rubber which gives the belt superior oil, heat resistant and antistatic conduction.
- Specific sizes in SPC/XPC section is also offered.
- Classic Double AA, BB, CC section belts standard sizes available.
- V BELTS from: MITSUBOSHI- SET FREE and TRIPLEX, DONGIL (Korea)- SUPERSTAR, CONTITECH- ROULOUNDS, SWR, CARLISLE (Italy).

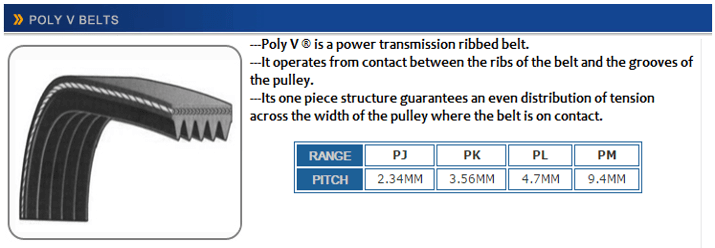

b) POLY V BELTS
- Poly V Belts available in PJ, PK, PL, PM pitches
- No of ribs cut as per requirement (Depending on the groove count on the client pulley)
- Standard lengths available in inches PJ (13 X 75), PK (26 X 100), PL (40 X 110)
- Special Pitch Poly V Belt PH is available in standard lengths
- Imported From: HUTCHINSON (Italy), MITSUBOSHI-RIBSTAR (Japan), GATES-MICRO V (USA), MITSUBA (Thailand) , CARLISLE-CHECKMATE (US)

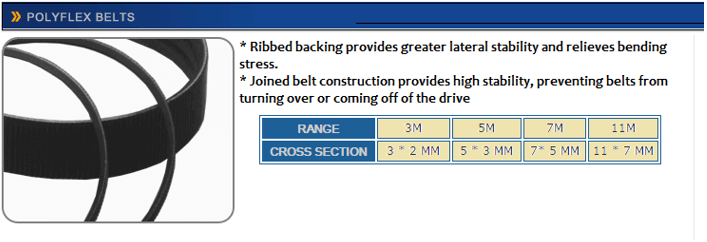

c) POLY FLEX BELTS
- PolyFlex belts are available in 3M, 5M, 7M and 11M Cross Sections.
- Cross Sections required depends on the rib-configuration on the pulleys.
- Poly Flex JB belts available in Gates and Mitsuboshi.
- 3/5M/1000JB means 3 strands, 5mm top width and 1000mm length and joined band construction.
- POLY V BELTS from: MITSUBOSHI- POLYMAX and GATES- JB.

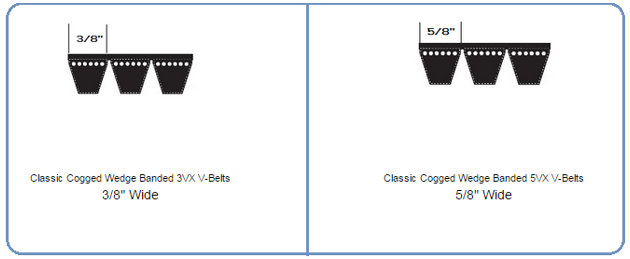

d) BANDED WEDGE BELTS
- Banded 3VX and 5VX Belts available.
- High adhesion strength between tie band and the belts.
- Special 8VX banded belt also available.
- BANDED V BELTS from: MITSUBOSHI and GATES- POWER BAND CARLISLE- GOLD RIBBO, MITSUBA.
e)VAREE SPEED BELTS
TRANSMISSION FLAT BELTS

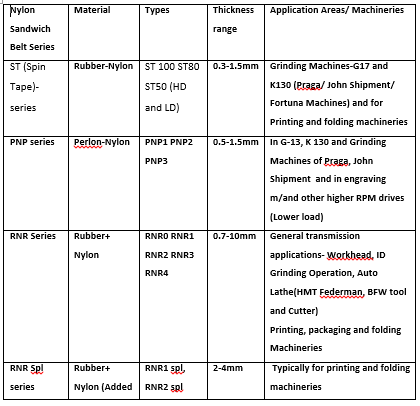

a) NYLON SANDWICH BELTS

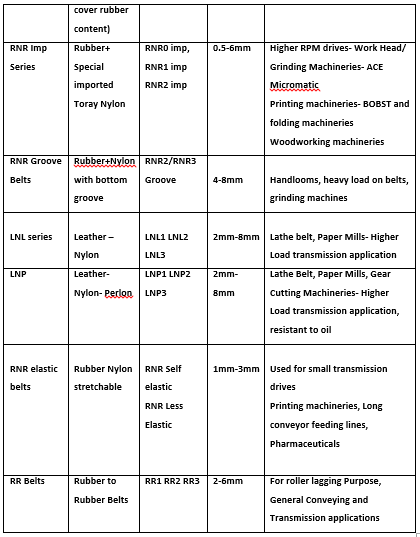

We are manufacturers of Nylon Sandwich Flat Belts. We offer a range of such belts that are suitable for Grinding/ Cutting/ Abrasive Skiving/ Knurling/ Hobbing/ Milling etc Machines. The Nylon Sandwich Belts have a layer (layers) of nylon fabric (the carcass material) sandwiched between two layers of cover material. Covers are made of material like Rubber, Leather, Silicone etc.
These belts are characterized by the Nylon layer Thickness/ Type between the cover material and also with respect to the cover material.
• Make: NYLO-GRIP brand, joints made using state of the art heat pressing machines and imported adhesives (NITTA Japan)
b) TRULY ENDLESS FLAT BELTS
For very high speed drives, we offer truly endless flat belts i.e, belts without joints in Megadyne, Mitsuboshi- Flexstar (T150 series) , BGK make.
These belts are used in grinding machines, drums and SPMS where high RPM is to be achieved in the drive.

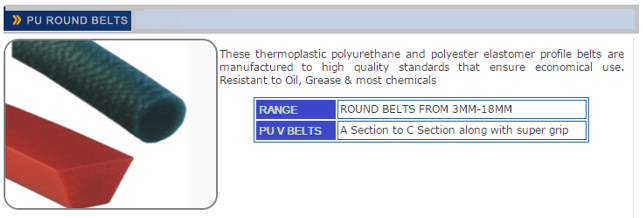

c) PU ROUND BELTS/ POLY CHORD BELTS

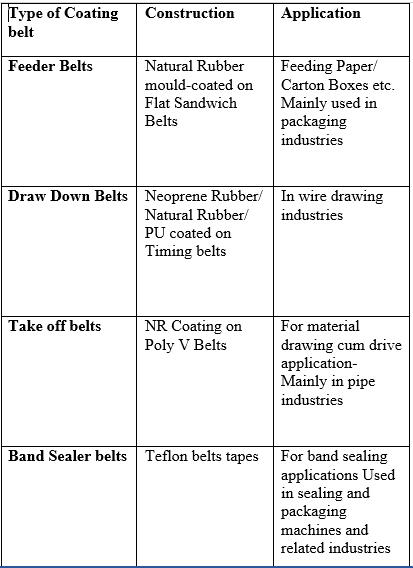

We offer various belts with coating/ cleats/ profiles/ attachments as per client requirement for conveyor cum transmission purpose. The coating material can be rubber. PU, Silicon as per the feeding/ conveying requirement. The coating/cleat is mould finished on the base belt (Timing Belt / Poly V Belt/ Nylon Sandwich flat belt).

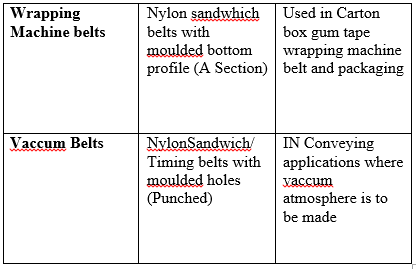

Main type of applications of Coating belts- Popularly supplied.

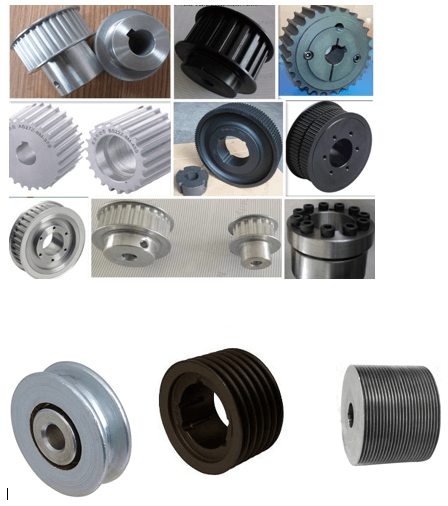

PULLEYS
We manufacture all types of Timing, flat, V and Poly V pulleys.
We are manufacturers of Nylon Sandwich Flat Belts. We offer a range of such belts that are suitable for Grinding/ Cutting/ Abrasive Skiving/ Knurling/ Hobbing/ Milling etc Machines. The Nylon Sandwich Belts have a layer (layers) of nylon fabric (the carcass material) sandwiched between two layers of cover material. Covers are made of material like Rubber, Leather, Silicone etc.
These belts are characterized by the Nylon layer Thickness/ Type between the cover material and also with respect to the cover material.
• Make: NYLO-GRIP brand, joints made using state of the art heat pressing machines and imported adhesives (NITTA Japan)
b) TRULY ENDLESS FLAT BELTS
For very high speed drives, we offer truly endless flat belts i.e, belts without joints in Megadyne, Mitsuboshi- Flexstar (T150 series) , BGK make.
These belts are used in grinding machines, drums and SPMS where high RPM is to be achieved in the drive.
c) PU ROUND BELTS/ POLY CHORD BELTS
- POLYCHORD belts of VOLTA make.
- Endless (Jointed) and open length available.
- Round shape and V- Belt section types available.
- Belt joining using FLEXCO fusing machines.
d) NYLON/COTTON WOVEN ROUND/FLAT BELTS
We deal in nylon woven endless round and flat belts which comes from finest handlooms of Chirala. Belts are made through the art of handloom which is unique in this place. The joint of the belt would be built in the weaving itself, which makes it harder to break and hence are known as truly endless woven belts. These are used in spinning mills, textile mills, garment industry, knitting industry, woolen mills, sewing machine motors, Laser engraving machines. Cotton Twisted belts are used in Pharmaceuticals and food industries. We also deal in regular size Perlon ropes.
We deal in nylon woven endless round and flat belts which comes from finest handlooms of Chirala. Belts are made through the art of handloom which is unique in this place. The joint of the belt would be built in the weaving itself, which makes it harder to break and hence are known as truly endless woven belts. These are used in spinning mills, textile mills, garment industry, knitting industry, woolen mills, sewing machine motors, Laser engraving machines. Cotton Twisted belts are used in Pharmaceuticals and food industries. We also deal in regular size Perlon ropes.
Main type of applications of Coating belts- Popularly supplied.
PULLEYS
We manufacture all types of Timing, flat, V and Poly V pulleys.
